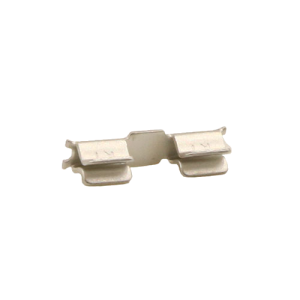

Product model
SC01-PF
Specification description
1. MATERIAL : SUS301
2. MATERIAL THICKNESS :0.15t
3. FINISHED : Sn(100%) PLATING ON BOTH SIDE
( Ni0.5㎛ Sn1.27㎛ )
4. PACKING MATERIALS.
- REEL : HIPS 0.3t
- COVER TAPE : PS
_ Q'TY/REEL : 10,000ea
5. AVAILABLE SHIELD CASE THICKNESS : 0.2+0.02-0
6. INTENTION FORCE/RETENTION FORCE SPEC
INTENTION FORCE :MAX 1.2Kg
RETENTION FORCE :MIN 0.5Kg
7. STENCIL THICKNESS : 0.12T
