Product model

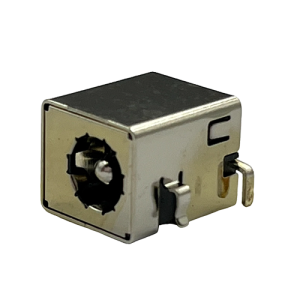

JD74-B-S6-PF
Specification description
SOLDERING : SMD
RATINGS : DC12V 7A
OPERATING LIFE : 5,000 Cycles
OPERATING FORCE : 3~40N
OPERATING TEMPERATURE : -16℃~+60℃
CONTACT RESISTANCE : 30mΩ Max.
INSULATION RESISTANCE : 100MΩ Min.
DIELECTRIC STRENGTH : AC500V 1Min
