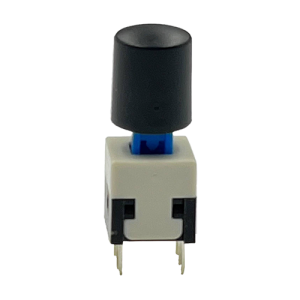

PS08-22L-S2-PF-CAP08-K-S-PF

Product model

PS08-22L-S2-PF-CAP08-K-S-PF

Specification description

SOLDERING : DIP
RATINGS : DC30V 0.1A
OPERATING LIFE : 10,000 Cycles
OPERATING FORCE : 250±100gf
OPERATING TEMPERATURE : -16℃~+60℃
CONTACT RESISTANCE : 100mΩ Max.
INSULATION RESISTANCE : 100MΩ Min.
DIELECTRIC STRENGTH : AC500V 1Min
