Product model

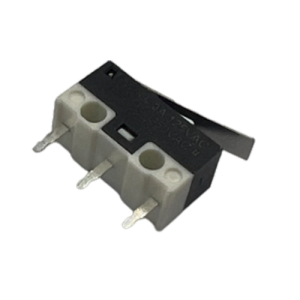

- KW2-3-133P-30-5
Specification description
SOLDERING : DIP
RATINGS : AC125V 3A
ELECTRICAL LIFE : 10,000 Cycles
MECHANICAL LIFE : 1,000,000 Cycles
OPERATING FORCE : 30±15gf max
OPERATING TEMPERATURE : -25℃~+85℃
CONTACT RESISTANCE : 100mΩ Max.
INSULATION RESISTANCE : >50mΩ DC500V
VOLTAGE PROOF : AC500V 1Min
