Product model

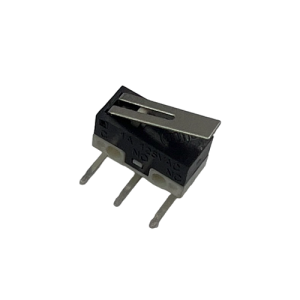

- DT69-L-S6-PF
Specification description
SOLDERING : DIP
RATINGS : DC30V 100mA
ELECTRICAL LIFE : 300,000 Cycles
MECHANICAL LIFE : 300,000 Cycles
OPERATING FORCE : 30±15gf max
OPERATING TEMPERATURE : -25℃~+85℃
CONTACT RESISTANCE : 500mΩ Max.
INSULATION RESISTANCE : >100MΩ DC500V
VOLTAGE PROOF : AC500V 1Min
