Product model

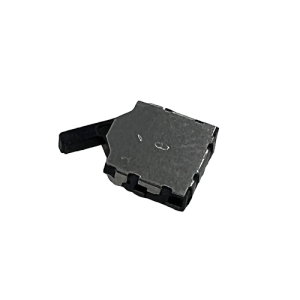

- DT40M-L-P-PF
Specification description
SOLDERING : SMD
RATINGS : DC5V 1mA
OPERATING LIFE : 50,000 Cycles
OPERATING FORCE : 35gf max.
OPERATING TEMPERATURE : -40℃~+85℃
CONTACT RESISTANCE : 2Ω Max.
INSULATION RESISTANCE : 100MΩ Min.
VOLTAGE PROOF : AC100V 1Min
