Product model

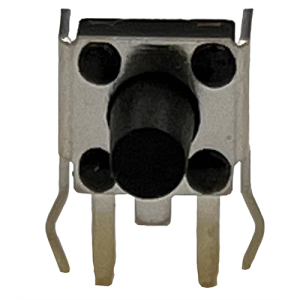

- TS33B-S1-PF
Specification description
SOLDERING : DIP
RATINGS : DC12V 50mA
OPERATING LIFE : 100,000 Cycles
OPERATING FORCE :
(K) 100 ± 30 gf
(N) 160 ± 30 gf
(R) 250 ± 30 gf
OPERATING TEMPERATURE : -20℃~+70℃
CONTACT RESISTANCE : 100mΩ Max.
INSULATION RESISTANCE : 100MΩ Min.
VOLTAGE PROOF : AC100V 1Min
