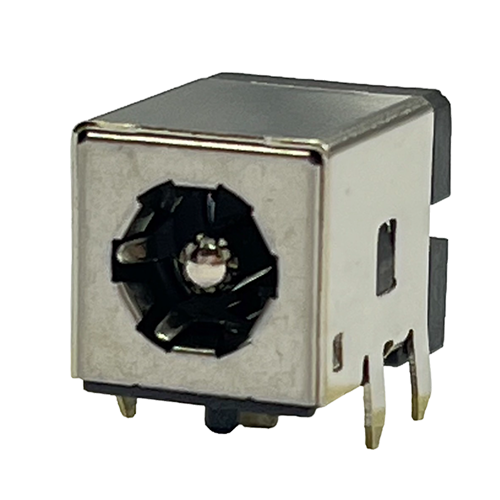

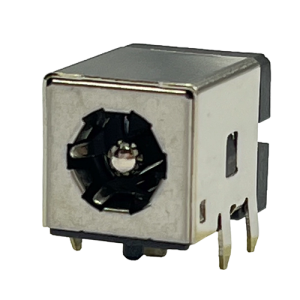

JD97-B-S6-PF

產品型號

JD97-B-S6-PF

規格描述

SOLDERING : SMD
RATINGS : DC30V 1A
OPERATING LIFE : 5,000 Cycles
OPERATING FORCE : 3~20N
OPERATING TEMPERATURE : -30℃~+70℃
CONTACT RESISTANCE : 30mΩ Max.
INSULATION RESISTANCE : 100MΩ Min.
DIELECTRIC STRENGTH : AC500V 1Min
