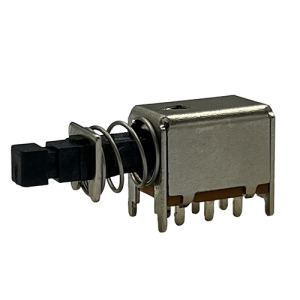

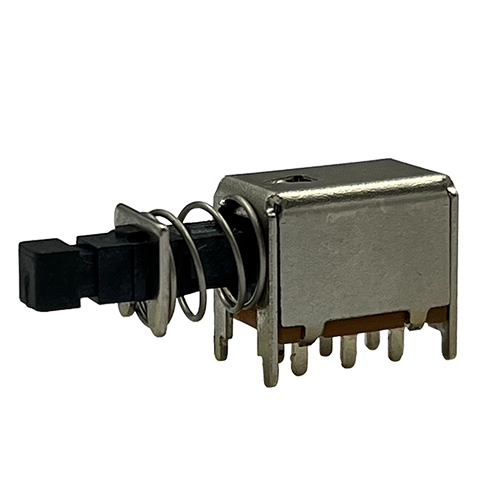

Product model
- PS82-22-S6-PF
Specification description
SOLDERING : DIP
RATINGS : DC12V 1A
OPERATING LIFE : 10,000 Cycles
OPERATING FORCE : 250±100gf
OPERATING TEMPERATURE : -25℃~+70℃
CONTACT RESISTANCE : 30mΩ Max.
INSULATION RESISTANCE : 100MΩ Min.
DIELECTRIC STRENGTH : AC500V 1Min
