Product model

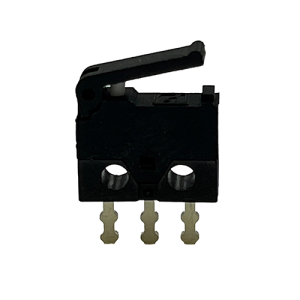

- DT55-S6-PF
Specification description
SOLDERING : DIP
RATINGS : DC 50V 0.3A
OPERATING LIFE : 50,000 Cycles
OPERATING FORCE : 40gf ±10gf
OPERATING TEMPERATURE : -20℃~+60℃
CONTACT RESISTANCE : 50mΩ Max.
INSULATION RESISTANCE : 100MΩ Min.
VOLTAGE PROOF : AC500V 1Min
